At MEIJIU we like to work towards the future, therefore we are delighted to introduce you to the MEIJIU-TX-MAX-1350W. Stepping up the game on high quality LED horticultural lighting, meet the brand new MEIJIU-TX-MAX-1350W, innovating with a unique frame that gives you a unique coverage on the LED horticultural industry due to it’s pioneering rectangle shape. Providing a rectangle coverage area. MEIJIU-TX-MAX-1350W is designed to create the best distribution light for commercial growing farms and vertical farms.
The specification MEIJIU-TX-MAX-1350W LED is a multi-light bar fixture with folding frame producing high levels of PPF of 2544 µmol/s and a very high efficacy of up to 2.4 µmol/J.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. MEIJIU full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution and uniform spread.

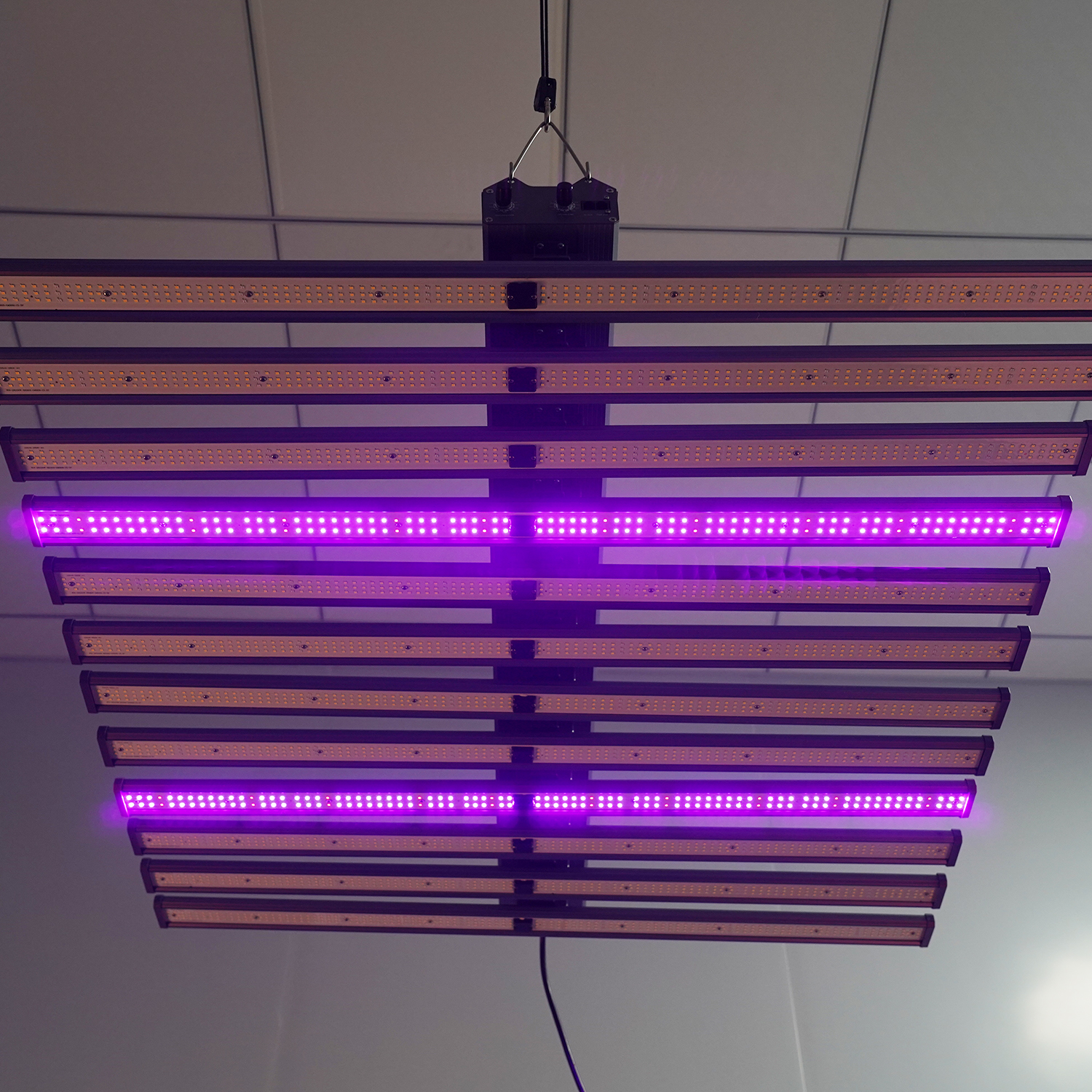

The new MEIJIU-TX-MAX-1350W features advanced top-bin LEDs from Samsung and Epistar, providing a full-spectrum light source that is fine-tuned for both vegetative and flowering stages of plant growth. One of the key advantages of this series is that it's equipped with two independently controlled UV bars, further enhancing the growing process for maximum efficiency and yield.
For different cultivars, propagation and vegetative growth periods the may be dimmed without losing efficiency. The high efficiency and low powered LED configuration with 12 LED bars reduces the temperature of the LEDs increasing the output and improving light maintenance.

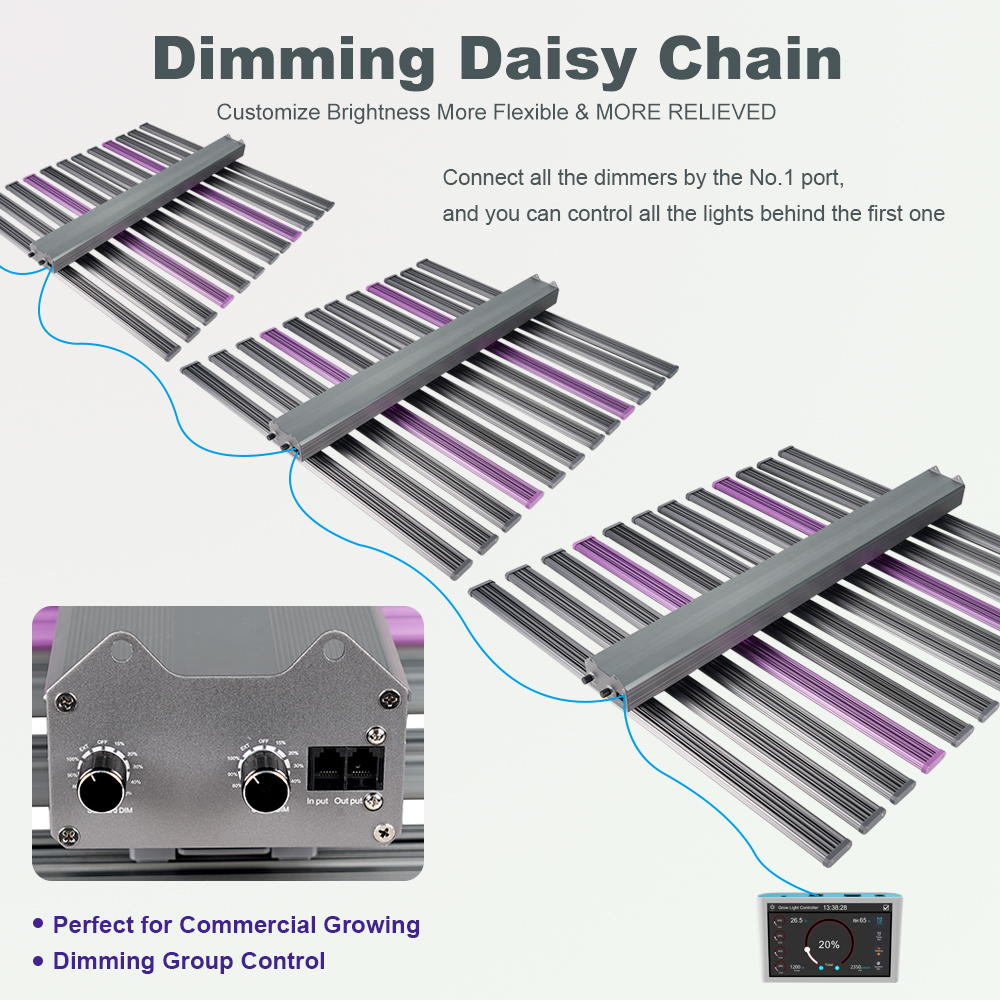

MEIJIU-TX-MAX-1350W led fixture can also be externally controlled with a RJ45 dimmer or wireless WIFI controller, with main controller, featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
- Efficacy up to 2.4 µmol/s/J- PPF output 2544 µmol/s- Unique and innovative large foldable frame designed for wider rectangular coverage- Outstanding light spread and distribution in 120X180cm grow area- Highly Pre-assembly- New Clear Glue protection cover technology on LED bars
- Top bin LEDs Samsung lm301B, deep red 660nm, far red 730nm and UV395nm- Two Independently controlled UV bars- External control with main Controller
- Fully Dimmable
ITEMS INCLUDED:- 10 x High Efficiency Full Spectrum Bars+2 UV Bars- 1 x Foldable Frame Structure with 1 LED Driver Box- 1 x 0-10V Light Dimmer - 2 x Adjustable Cable Hangers+Power Cable- 1 x Manual
KEY SPECIFICATIONS
PRODUCT CODE: 101007
EFFICACY: up to 2.4 µmol/J
PPF: 2544 µmol/s
INPUT VOLTAGE: 100-277VAC, 50-60Hz
INPUT POWER: 1100W(±5%)
FOOTPRINT: 120x200cm
LIFETIME: 50 000 hrs
LIGHT DISTRIBUTION: 120°
LIGHT SOURCE: Samsung LM301B+EpistarTHERMAL MANAGEMENT: Passive CoolingDIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)EXTERNAL CONTROL: With Main Controller or Universal Controller 0-10VWEIGHT: 17KgDIMENSIONS: 110x180x3.2cm
Experience the benefits of LED lighting with MEIJIU: energy savings, adaptable lighting, and reduced maintenance.
