At MEIJIU we like to work towards the future, therefore we are delighted to introduce you to the MEIJIU PTU 01 650W V3. MEIJIU PTU 01 650W V3 is a high efficiency - bright white LED grow light designed for supplemental greenhouse and indoor use. The thin profile design minimizes shadows in the greenhouse and can also be used in various indoor applications. At a lower operating cost than traditional technology, MEIJIU PTU 01 650W V3 ensures vigorous production throughout the entire year, without bulb changes and maintenance.
MEIJIU PTU 01 650W V3 is a linear bar fixture producing extremely high levels of PPF of 1885 µmol/s and a very high efficacy of up to 2.9 µmol/J.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. MEIJIU full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution and uniform spread.
The fixture efficacy will vary depending on the Input Voltage used.

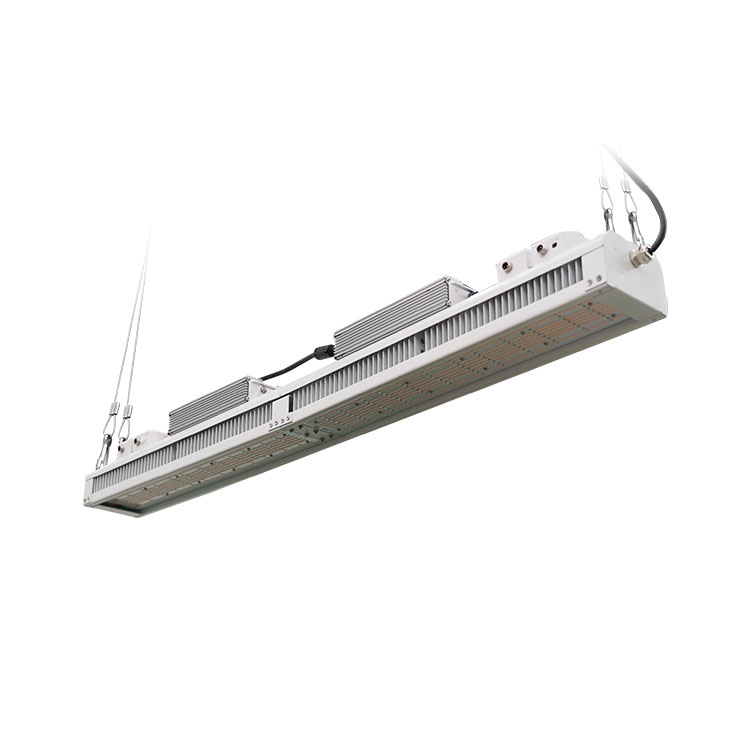

MEIJIU PTU 01 650W V3 produces ultra-high levels of PPFD evenly spread over a 60X150CM grow area and a full-spectrum grow light producing consistently high quality & high yield indoor crops. This fixture has linear shape that creates a uniform spread of light at short distance to the crop enabling single source grow lighting for multi-layer cultivation systems, single benches in low rooms and grow tents.
The new line of MEIJIU PTU is built using high quality Inventronics drivers and latest generation top bin LEDs from Samsung and Epistar, generating a full-spectrum light source ideal for veg and flowering cycles. Another new feature of this line is the Clear Glue protection cover technology on the LED bars; resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
MEIJIU is a pioneer on the innovative, modular, magnetic LED light bar design.
For different cultivars, propagation and vegetative growth periods the may be dimmed without losing efficiency. The high efficiency and low powered LED configuration reduces the temperature of the LEDs increasing the output and improving light maintenance.
MEIJIU PTU 01 650W V3 led fixture can also be externally controlled with a RJ45 dimmer or wireless WIFI controller, with main controller, featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
Universal Control Systems Compatibility
MEIJIU LED Fixtures can be fully controlled with either the MEIJIU main controller or with any other Control System that utilises 0-10V output signal （only with the same connector）. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
- Very high efficacy up to 2.9 µmol/s/J - Very high PPF output for high intensity 1885µmol/s - Thin profile design minimizes shadows in the greenhouse
- Outstanding light spread and distribution in 60X150CM grow area - High quality Inventronics LED drivers - New Clear Glue protection cover technology on LED bars

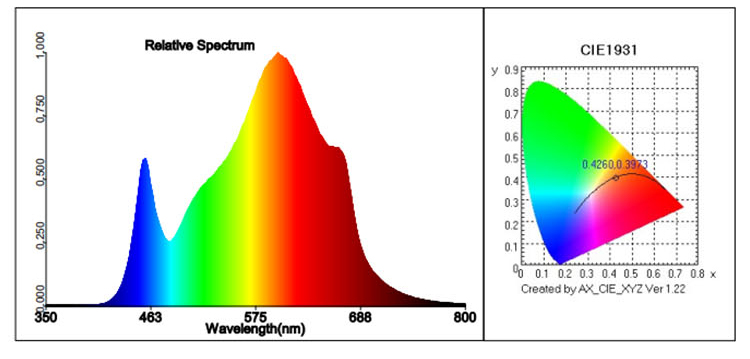

- Top bin LEDs Samsung lm301h and Epistar deep red 660nm - Balanced full spectrum - External control with main Controller
- Fully Dimmable - User friendly Plug & Play Assembling

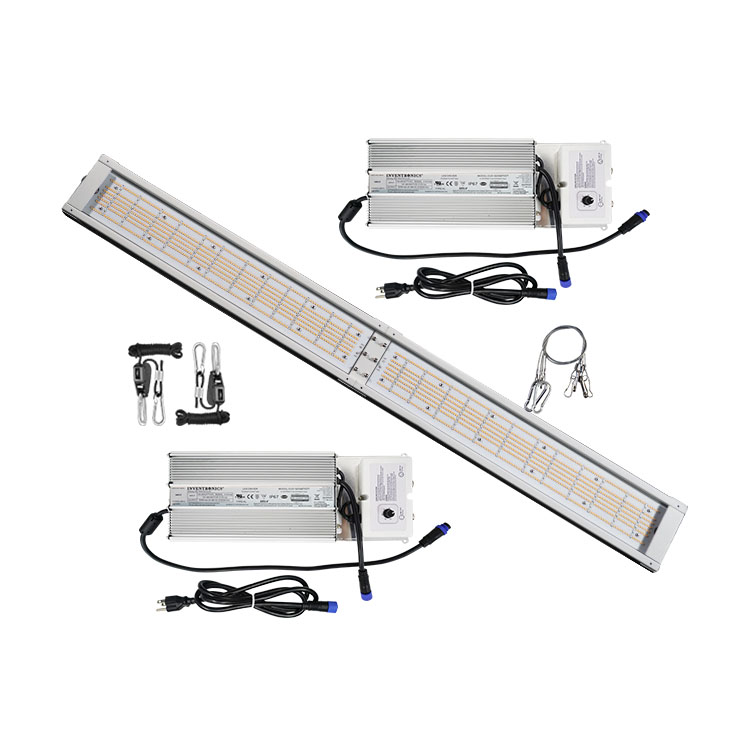

ITEMS INCLUDED: - 1 x High efficiency 2.9 Full-Spectrum Light Bar - 1 x 76mm thick heatsink - 1 x 0-10V Light Dimmer
- 1 Inventronics 600w driver - 2 x Adjustable Cable Hangers - 1 x Manual
PRODUCT CODE: MEIJIU PTU 01 650W V3
EFFICACY: up to 2.9 µmol/J
INPUT VOLTAGE: 100-277VAC, 50-60Hz
INPUT POWER: 650w (±5%)
LIFETIME: 50 000 hrs
LIGHT DISTRIBUTION: 120°
LIGHT SOURCE: Higher Spec Epistar and Samsung lm301h THERMAL MANAGEMENT: Passive Cooling DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included) EXTERNAL CONTROL: With Main Controller or Universal Controller 0-10V WEIGHT: 6 Kg DIMENSIONS: 1165x122x76mm SPECTRUM: Full Spectrum
MEIJIU 650w SAMSUNG LM301H Mixing Deep Red 660NM Full Spectrum Linear Grow Light For Greenhouse
Benefits include energy savings; MEIJIU LED solutions demonstrate the potential to save 40% on electricity and studies indicate that LED-lit canopies can generate more yield per kWh. Flexible light intensity; MEIJIU LEDs can be dimmed to adjust PPF level to suit crop and growth stage without changing spectral power distribution or losing efficiency.
Less maintenance; MEIJIU LEDs are rated for 50,000 hours.
