MEIJIU 320w SAMSUNG LM301H Mixing OSRAM 660NM Full Spectrum 650r Quantum Board For 2X4FT

$000
$000
Quantity
Only 0 left
Description

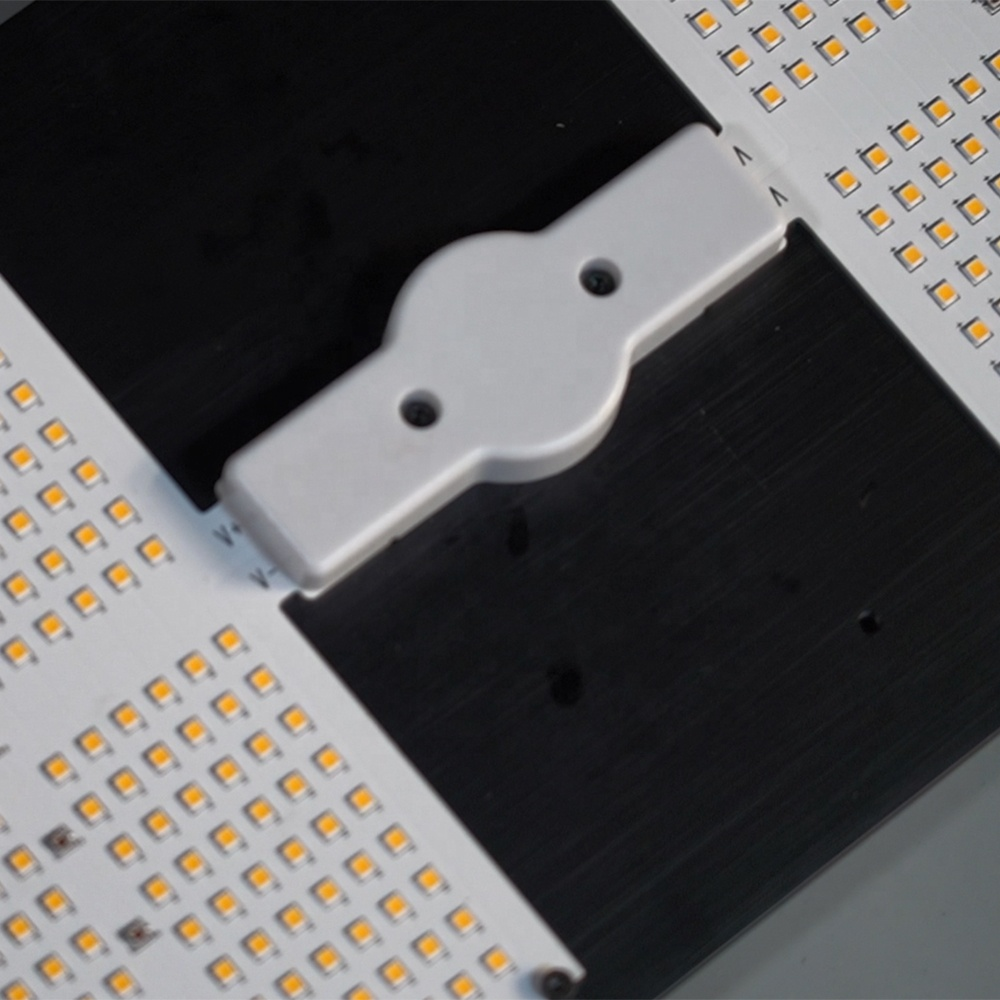

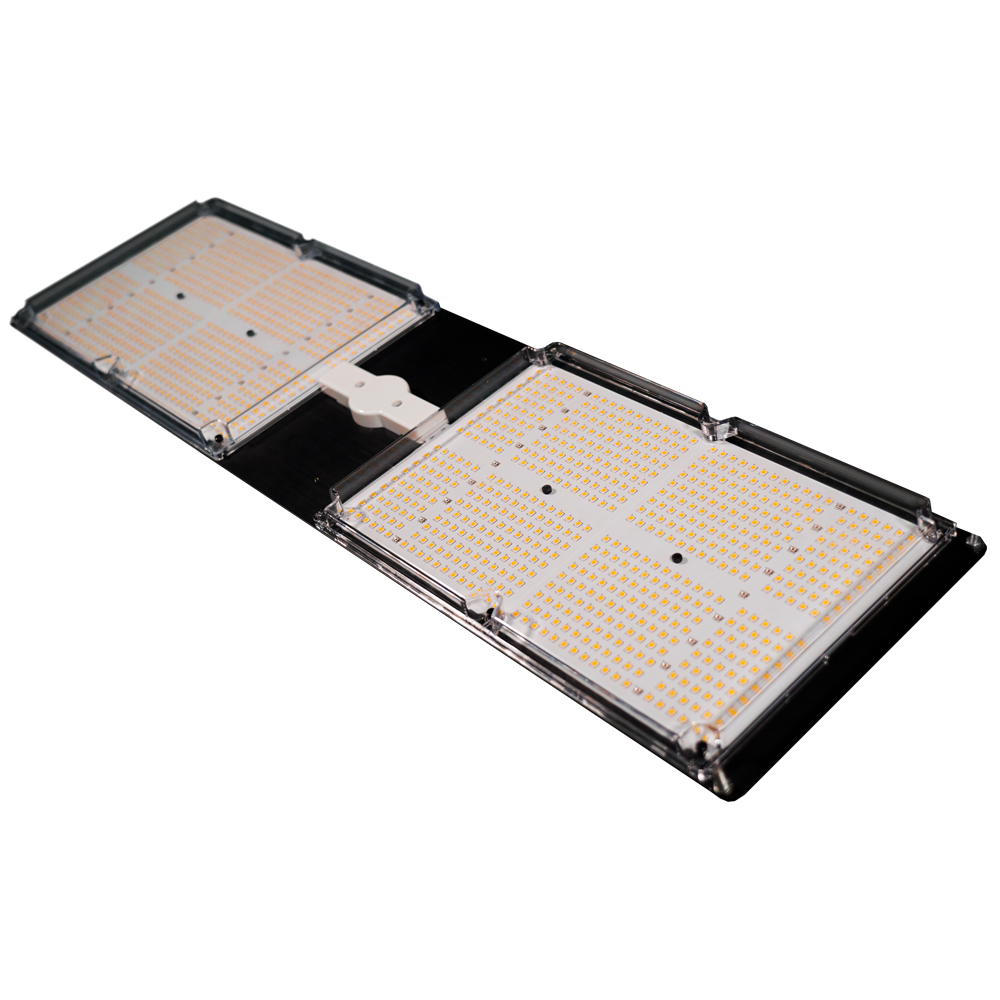

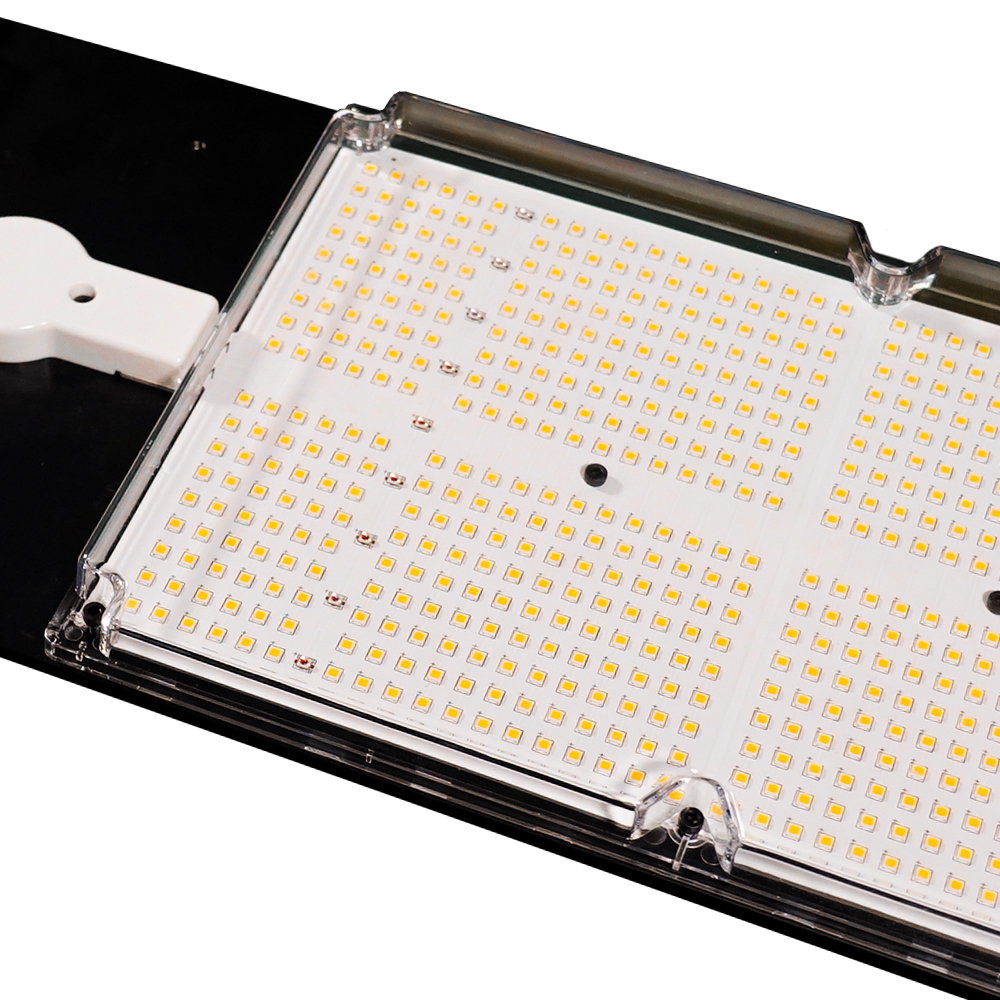

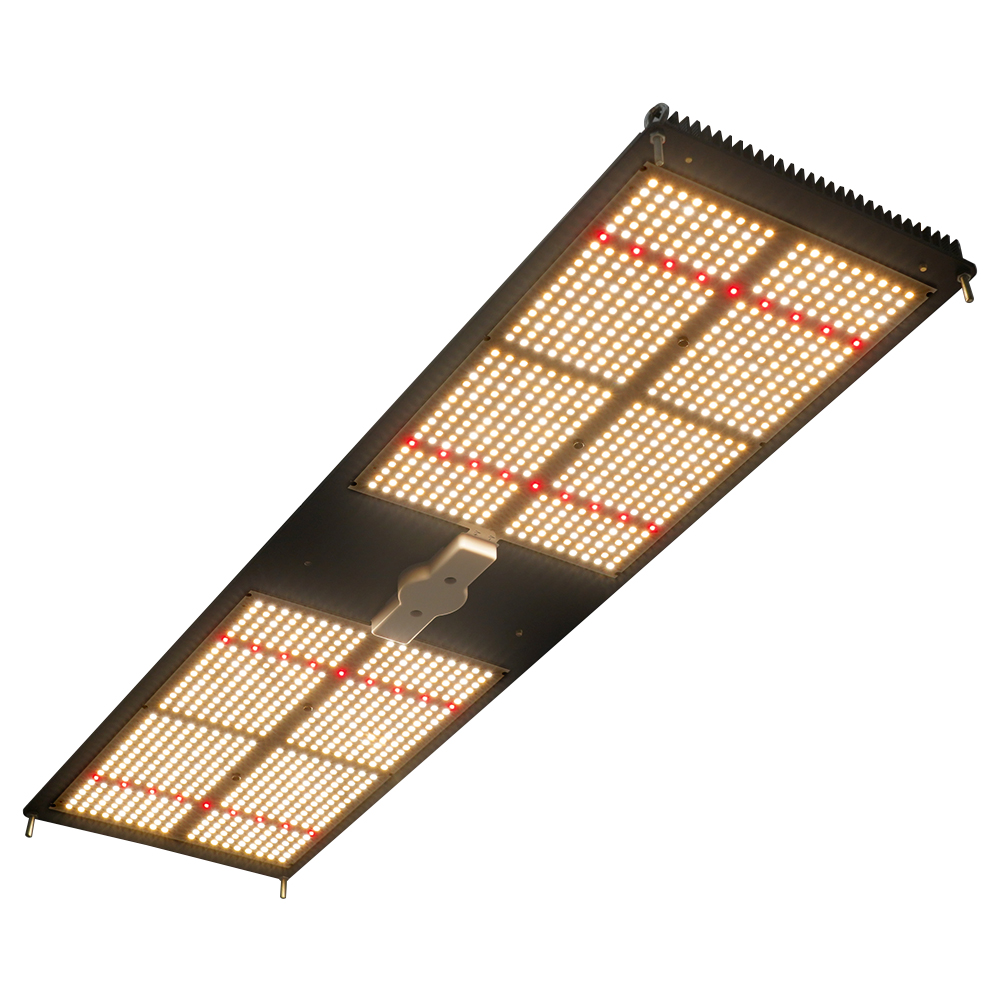

Our MEIJIU Q2 320W V3 QUANTUM BOARD indoor horticulture LED grow light is designed to replace 600 watt HID. The MEIJIU Q2 320W V3 QUANTUM BOARD uses 2 of our custom designed full-spectrum high efficiency white light Quantum Boards with Samsung LM301H and Osram deep red 660nm.



MEIJIU Q2 320W V3 QUANTUM BOARD produces ultra-high levels of PPFD evenly spread over a 60X120CM grow area and a full-spectrum grow light producing consistently high quality & high yield indoor crops.



The new line of MEIJIU Q2 320W V3 QUANTUM BOARD is built using high quality Inventronics drivers and latest generation top bin LEDs from Samsung and Osram, generating a full-spectrum light source ideal for veg and flowering cycles.

External Control

MEIJIU Q2 320W V3 led fixture can also be externally controlled with a RJ45 dimmer or wireless WIFI controller, with main controller, featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.





Universal Control Systems Compatibility

MEIJIU LED Fixtures can be fully controlled with either the MEIJIU main controller or with any other Control System that utilises 0-10V output signal (only with the same connector). Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.



FEATURES

  • New improved longer design for more even light coverage
  • High efficiency white light Quantum Boards
  • Full-spectrum White and 660nm Red
  • Reliable passive-cooled design
  • Better canopy light penetration with diffused light
  • Inventronics Dimmable LED power supply included
  • Auto sensing power supply works on both 120VAC and 240VAC

Specifications

Power

320 Watts

Voltage Range

90-277 VAC

Flowering Footprint

2' x 4'

Veg Footprint

3' x 5'

System PPF Efficacy

3.0 μmol/joule

Total output

960 PPF

Dimensions

28.5″x 7.7″

Recommended Mounting Height

18-24 inches

Note that this lamp does not offer dim-to-off functionality. Dimming feature allows only dimming but cannot turn off the lamp completely.

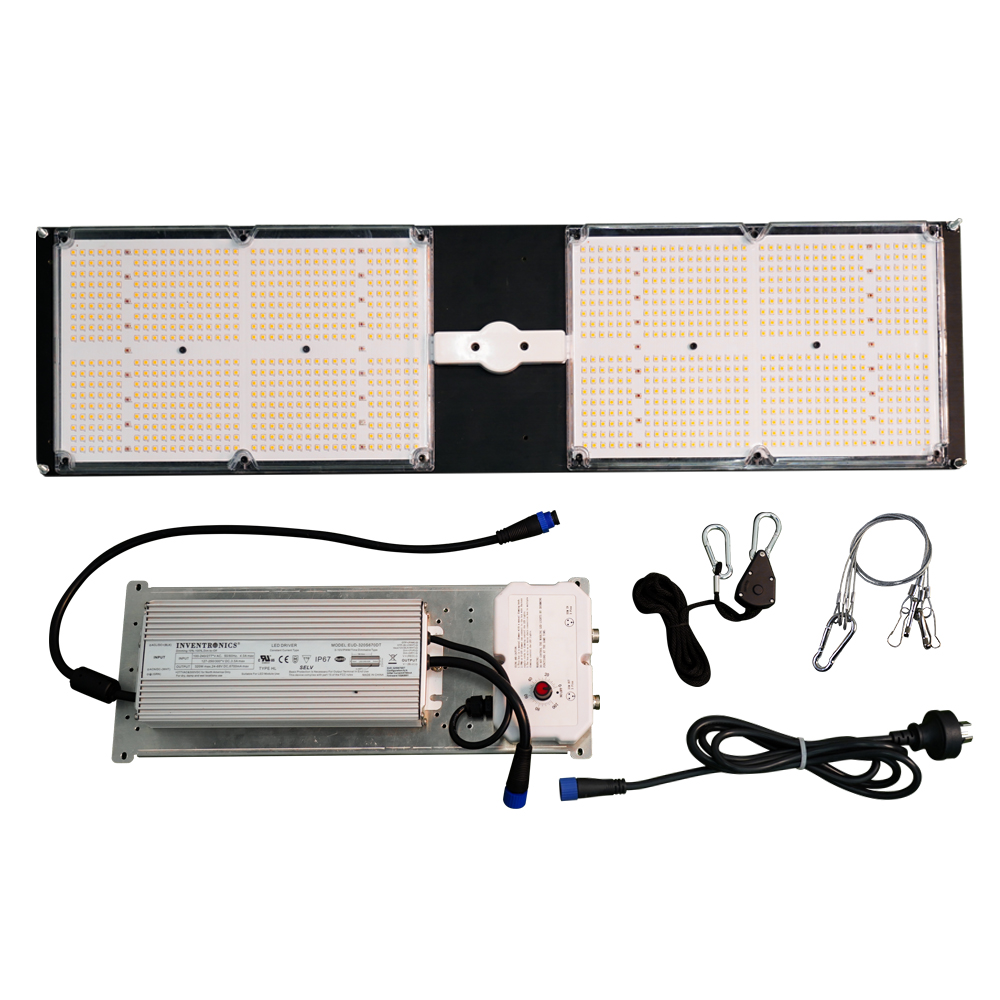

ITEMS INCLUDED:
- 2 x MEIJIU 160w 3.0 Full-Spectrum quantum boards

-1 x MEIJIU 35MM HEATSINKS

-1 X 320w Inventronics Driver

-1 x 0-10V Light Dimmer

-1 x Power Cable

-2 x Adjustable Cable Hangers
-1 x User Manual
